Ⅰ. Overview
Membrane Solutions (MS) MicrodiscTM (Individual package) and MicrofilmTM (Continuous package) Sterile Mixed Cellulose Ester (MCE) Gridded Membrane Filter are composed of Cellulose Acetate (CA) and Cellulose Nitrate (CN).
Because MCE membrane is biologically inert, it’s one of the most widely used membranes in analytical and research applications.
MCE Membrane Filter is characterized by a smoother and more uniform surface than pure nitrocellulose filter. Also, the color contrast provided by the filter surface facilitates particle detection and minimizes eye fatigue. Also offer CN and CA Gridded membrane.
MicrodiscTM Membrane Filter, 0.45 µm pore size, gridded
Ⅱ. Features and Benefits
- Excellent retention and colony growth : high recovery rates of microorganisms
- Individually wrapped in easy-peel band pack, gamma irradiation
- Calibrated Mixed Cellulose filters, which designed to maximize flow rates.
- “Multi-fit”, are designed as “one size fits all”, could be used in Dispensers
- High Performance MCE membrane uses microbiological – “friendly” ink which promotes growth on grids to maximize recovery
- The filter type, diameter, lot number, sterilization and expiration date are printed on package
MicrodiscTM individual package

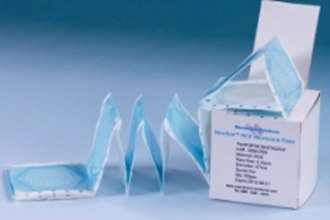

MicrofilmTM continuous package
Ⅲ. Applications of Gridded Membrane Filters
- Colony counting (Microbial enumeration)
- General Microscopy
- Particulate counting and analysis
Ⅳ. Industries
- Bottled Water
- Food & Beverage (Beer, Wine, carbonated drinks, etc.)
- Environmental
- Cosmetics
- Pharmaceutical
Ⅴ. Part Number Matrix
Part Number Matrix |
|||||||
|---|---|---|---|---|---|---|---|
| Filter Media | Diameter (mm) | Pore Size (μm) | Package Format | Membrane/Grid Color | Pre-Sterilized | ||
| MF | MCE | 047 | 022 | G | W | S | |
| CA (Cellulose Acetate) CN (nitrocellulose) MCE (Mixed Cellulose Ester) |
025=25 037=37 047=47 050=50 |
022=0.2 045=0.45 065=0.65 080=0.8 100=1.0 120=1.2 500=5.0 800=8.0 |
G=Individually packed C=Continuous packed |
(W=White membrane black grid B= Black membrane white grid G= White membrane green grid |
S=Yes N=No |
||
MFMCE047022GWS=MicrodiscTM MCE gridded membrane filter, 47mm, 0.22μm, white membrane with black grid, individual packing.
Ⅵ. How to order our products and for more informations
We can provide all types of filters from microfiltration membrane to Ultrapure Water systemes with very competitive qualities and prices.
if you want to order, need more details or technique support, please contact us at microbioclinique@gmail.com
We make every effort to ensure that our website contains complete and up-to-date information on all our products. If you cannot find the desired product, please contact us.
